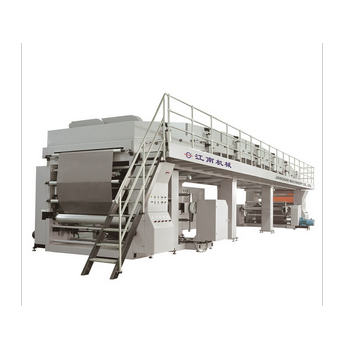

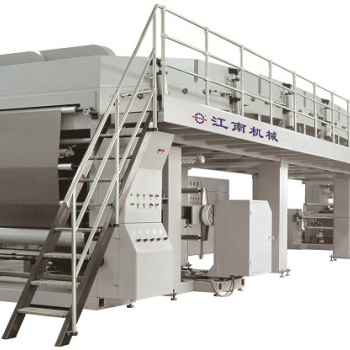

TB850光學膜類涂布復合機

TB-series Multifunctional Optical Film CoatingLaminating Machine

技術參數

Technicalparameters

1、涂布方式：多功能涂布，可選配逗號輥涂布、網線輥涂布、微凹輥涂布、擠出涂布、線           棒涂布等。

Coatingtype: multifunctional coating, coating type can adopt comma scraper coating,anilox roller coating, micro concave roller coating, extrusion coating or wirebar coating.

2、有效涂布寬度：500-1600mm

Effective coating width: 500mm-1600mm

3、機械速度：               5-50m/min(視工藝而定)

Mechanicalspeed: 5-50m/min（depends on production technology）

4、放卷直徑：                ≤φ850mm（雙工位，不停機換卷）

Unwindingdiameter: ≤φ850mm（double station，non-stop material changing）

5、收卷直徑：                ≤φ850mm（雙工位，不停機換卷）

Rewindingdiameter: ≤φ850mm（double station，non-stop material changing）

6、加熱干燥方式：               離心風機熱風循環，加熱方式可選電加熱、導熱油加熱、蒸汽加熱、熱風爐加熱等。

Heating and drying type: heating cyclingwind by centrifugal blower, heating type can adopt electric hearing, heatconduction oil heating, steam heating or hot-blast stove heating.

7、烘箱長度以及溫度控制：烘箱長度15-60m可選，3m一個溫區，溫度自動控制50-170℃±2℃

Ovenlength and temperature control: 15-60m optional oven length, 3m for eachtemperature section, 50-170℃±2℃ automaticcontrolled temperature.

8、卷取邊緣整齊：             ±1.0mm

Winding edge planeness: ±1.0mm

9、裝機總功率：                  約50-200kw（視加熱方式而定）

Totalpower: about 50-200kw（depends on heating type）

11、外型尺寸：                   395002800x5000mm(長x寬x高)27m烘箱

Overalldimension: 395002800x5000mm（LxWxH）,27m of oven.

性能特點

Performancecharacteristics

1.整機為機組框架式結構，機器長度可根據生產需要選擇

Whole machine adopts unit-frame type structure，machine length can be made according to production requirement

2.涂布方式根據實際工藝要求，可選配逗號輥涂布、網線輥涂布、微凹輥涂布、擠出涂布、線棒涂布等多種計量涂布方式。

Coatingtype can adopt comma scraper coating, anilox roller coating, micro concaveroller coating, extrusion coating or wire bar coating, according to actualproduction technology.

3.交流變頻無極調速，放卷儲料、前牽引、涂布、復合牽引、收卷儲料等多點同步控制。

Stepless speed regulating by AC inverter, synchronouscontrol of unwinding, p-traction, coating, laminating traction and rewinding.

4.烘箱部分為分段獨立恒溫干燥系統，可采用電加熱或?qū)嵊图訜岬榷喾N加熱方式；每溫區自動調控溫度

Sectional independent homothermal drying system of oven,heating type can adopt electric heating, heat conduction oil heating and so on, automatictemperature control for each temperature section.

5.涂布量自動控制、自動升降速、自動斷帶檢測、自動故障報警、氣動元件自動離合等。

Automatic coating weight, automatic speed up and down, automaticmaterial breaking inspection, automatic failure warning, automatic separationand reunio of pneumatic component.

6.收放卷采用自動翻轉雙工位結構配儲料裝置，可實現不停機換卷。

Unwindingand rewinding adopt automatic rotary double stations，non-stop material changing.
