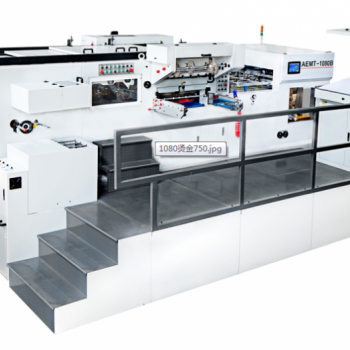

AEM-1080T全自動平壓平縱橫燙印模切機

AEM-1080T主要技術參數

*大紙張尺寸：                                              1080 x 780 mm

*小紙張尺寸：                                                400 x 330 mm

*大模切尺寸：                                               1075 x 770 mm

*大燙印尺寸：                                               1060 x 760 mm

*小叼牙尺寸:                                                       7 mm

模切工作精度：                                              ≤±0.125 mm

燙印工作精度：                                               ≤±0.125 mm

*大模切壓力:                                                      300 T

*高模切速度:                                                   7000 S/H

*高燙印速度:                                                   6500 S/H

箔卷*大直徑:                                                   Φ250 mm

縱向箔卷寬度:                                                 15~1060 mm

橫向箔卷寬度:                                                  15~760 mm

縱向 放 箔軸:                                                      3 pce

橫向 放 箔軸:                                                      2 pce

加熱溫區數量:                                                     12 pce

可調溫度范圍:                                                 50~199  ℃

輸紙碼堆高度:                                                    1550 mm

收紙碼堆高度:                                                    1500 mm

紙張適應范圍:

白板紙:                                          0.12～2 mm

瓦楞紙:                                              ＜4 mm

主電 機 功率：                                                     11 KW

加熱溫區功率：                                                     24 KW

總   功   率：                                                     60 KW

機器外形尺寸：(LxWxH）                   5950(+1600)x2550(+1400)x2600 mm

整 機  重 量:                                                       17 T
